leather laser cutter

Sales leather laser cutter

It is with blade/honeycomb table, suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth,etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional.

Product Detail

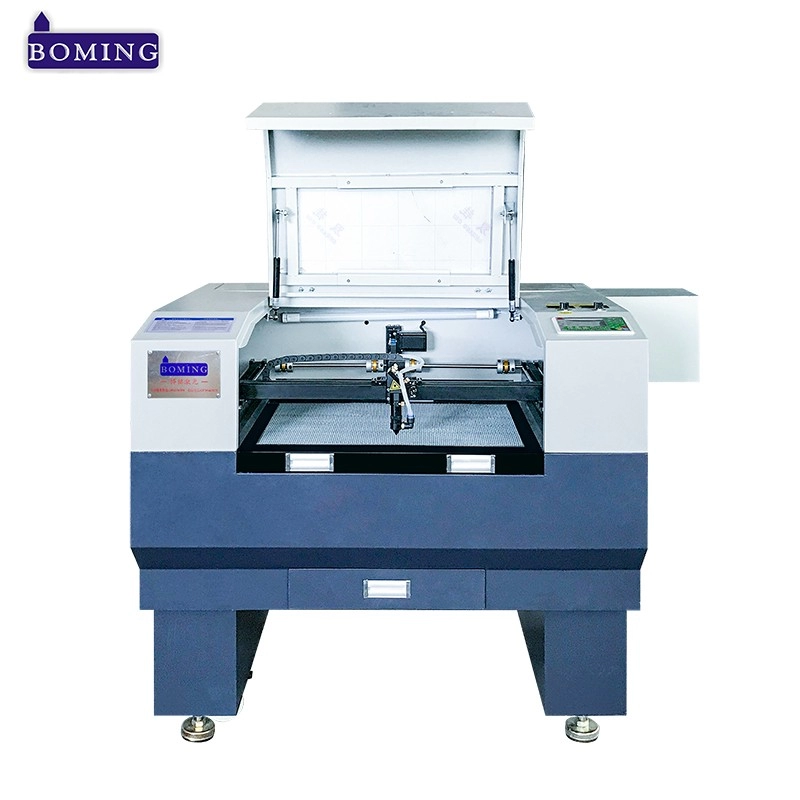

Leather laser cutter with blade/honeycomb table, suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth,etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional.

laser wood cutter

plywood laser cutting machine

laser cutting machine price

China laser cutter

Features:of plywood laser cutting machine

1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.

2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward  sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.

3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.

4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.

5、The customized maehines with different size are available.



Advantage: of laser cutting machine prices

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries:of cnc laser cutting machine

Garment, shoes, bags, compute rized embroidery and clipping.model  cutting, electronics ,toys, furniture,  advertisement  decorations,  handicraft,packing, printing and other industries.




Applicable Materials: of foam Laser Cutting Machine

Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.




Technical Parameters:of  co2 laser cutting machine

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm

Positional Accuracy

±0.05mm

Working table

Blade/honeycomb/Square

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

paper laser cutting machine


laser cutting machine engraving


Using Attention:


1) Open the industrial chiller and add pure water before the machine starts running.

2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.

3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.

4) The machine must be kept flat to avoid tilting.

5) When the machine working, it must be with personnel, avoid fire.




Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.
